Name: VP-426C
Availability: InStock

VP-426C

가격문의(상세정보 참조)

72-042690

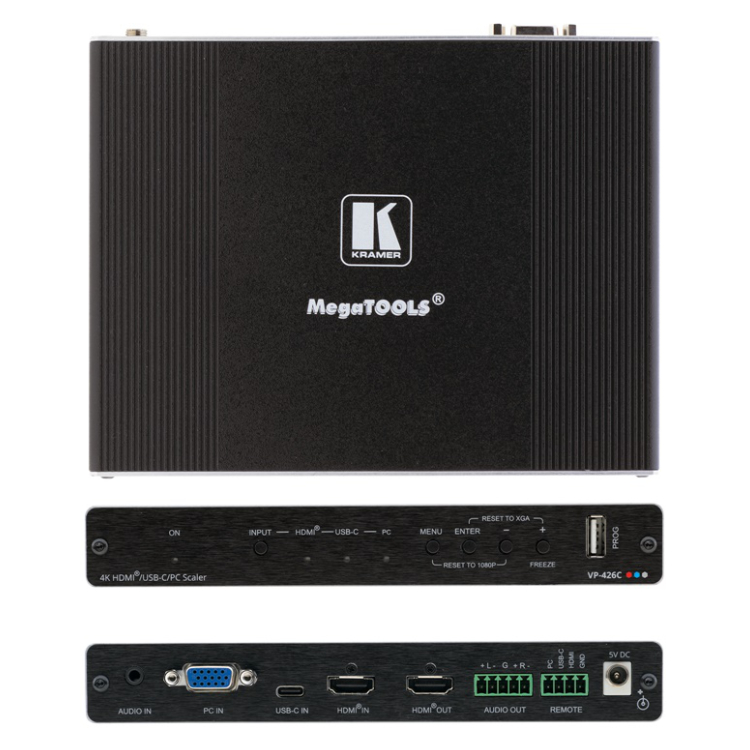

18G 4K HDR HDMI ProScale™ Digital Scaler with HDMI, USB–C and VGA Inputs

Max. input resolution:4K@60 (4:4:4)
Max. data rate:18Gbps (6Gbps per graphic channel)
HDCP 2.2 & 1.4 compliant
USB–C, HDMI and, legacy, VGA inputs
Analog audio embedding and de–embedding
OSD menu and front panel input selection

HDMI | 4K/60 UHD (4:4:4)

Inputs	1 HDMI: On a female HDMI connector 1 USB-C: 1 USB–C: On a female USB–C connector (DP Alternate Mode) 1 Computer Graphics (VGA): On and 15–pin HD connector 1 Unbalanced Stereo Audio: On a 3.5mm mini jack
Outputs	1 HDMI: On a female HDMI connector 1 Balanced Analog Stereo Audio: On a 5–pin terminal block
Ports	4 Contact Closure Switches: On a 4–pin terminal block 1 USB: On a USB–A connector for firmware upgrade
Video	Max. Input Resolution: 4K@60 (4:4:4) Max. Data Rate: 18Gbps (6Gbps per graphic channel) Input HDMI/USB-C Resolutions: 480i/576i, 480p/576p, 640x480@60/67/72/75/85Hz, 720p@50/60Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1080i@50/60Hz, 1080p@24/25/30Hz, 1080p@50/60Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60 RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60 RB, 2048x1080@24/25/30/50/60Hz, 2560x1600@60 RB, 2560x1440@60 RB, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4) Input VGA Resolutions: 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60 RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60 RB Output Resolutions: 640x480@60Hz, 720x480p@60Hz, 720x576p@50Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1280x720P@50/60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1080P@24/25/30/50/60Hz, 1920x1200 RB@60Hz, 2048x1080@50/60Hz, 2560x1080P@50/60Hz, 2560x1440 RB@60Hz, 2560x1600 RB@60Hz, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4) Latency: 1–2 frames Content Protection: HDCP 2.2 & 1.4
User Interface	CControls: Input selector, video freeze and resolution reset front panel buttons, OSD menu Indicators: Selected input and power LEDs
Power	Source: 5V DC Consumption: 2.4A
Enclosure	Size: MegaTOOLS® Type: Aluminum Cooling: Convection ventilation
Environmental Conditions	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Accessories	Included: Power adapter, bracket set, rubber feet
Product Dimensions	18.75cm x 14.50cm x 2.54cm (7.38" x 5.71" x 1.00" ) W, D, H
Product Weight	0.7kg (1.5lbs) approx.
Shipping Dimensions	34.40cm x 20.90cm x 6.80cm (13.54" x 8.23" x 2.68" ) W, D, H
Shipping Weight	1.3kg (2.8lbs) approx.
